HVAC Sensorless Systems

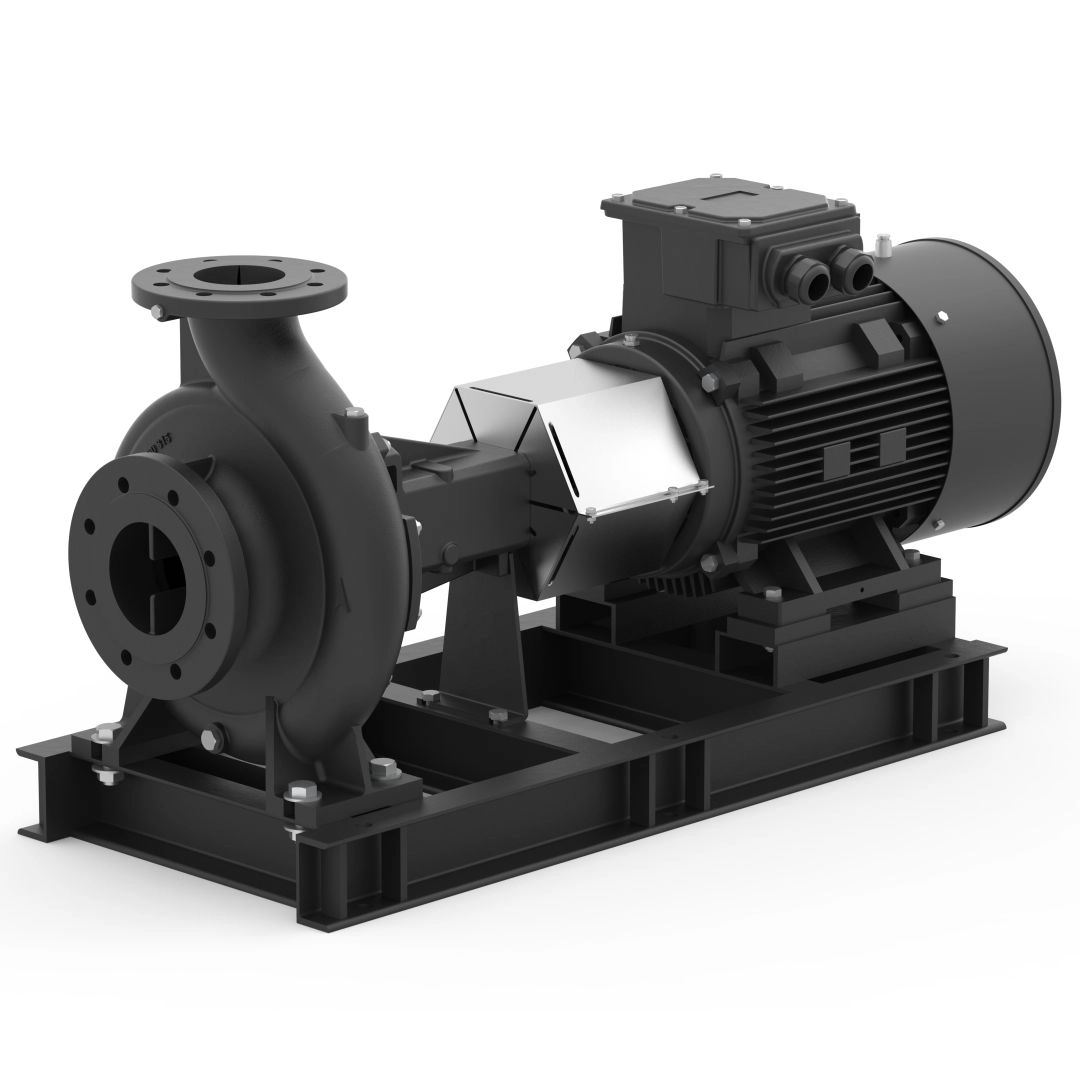

End Suction Long Coupled Pumps (GBS Series)
GBS are single-stage bare shaft end-suction pumps according to ISO 2858.
-
Flow range : 50 Hz. : up to 1680 m³/h 60 Hz. : up to 3350 usgpm
-
Head range : 50 Hz. : up to 152 mtrs 60 Hz. : up to 470 feet
-
Rating : 50 Hz. : 0.37 - 350 kW 60 Hz. : 0.37 - 150 kW
-
Rated speed : 50 Hz. : 960/1450/2900 rpm 60 Hz. : 1150/1750/3450 rpm

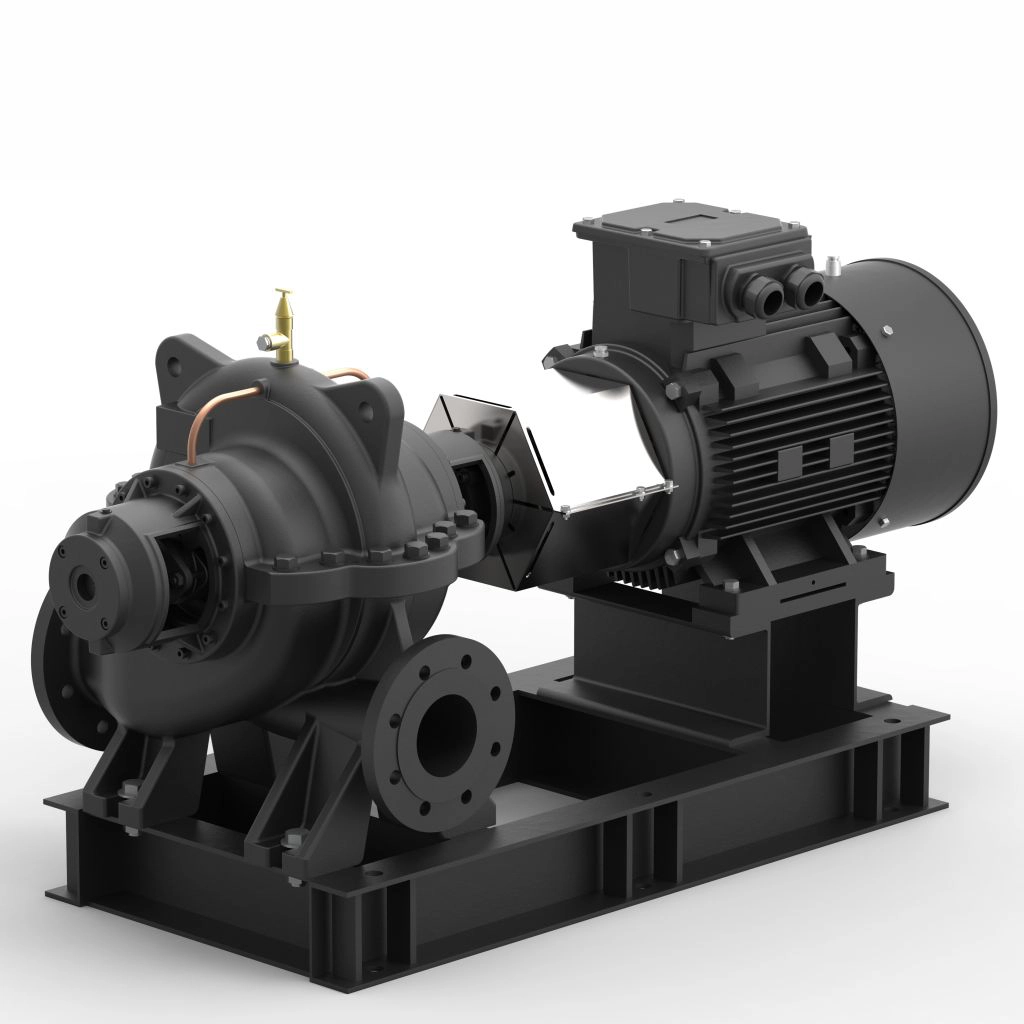

Horizontal Split Case Pumps (GHC Series)
GHC are horizontal split case pumps. The pumps have horizontal pump shaft and the volute casing can be dismantled in the horizontal plane along the drive shaft.
-
Flow range : 50 Hz. : 20 to 2700 m³/h 60 Hz. : Up to 7000 usgpm
-
Head range : 50 Hz. : 4 to 135 mtrs 60 Hz. : Up to 580 Feet
-
Rating : 50 Hz. : 3.0 - 315.0 kW 60 Hz. : Up to 150KW
-
Rated speed : 50 Hz. : 960, 1450 & 2900 rpm 60 Hz. : 1150/1750/3450 rpm

Close-Coupled Vertical In-Line Pumps (GVI/GVS Series)
The GVI & GVS series are vertical, single-stage, centrifugal, close-coupled & split-coupled vertical inline pumps.
-
Flow range : 50 Hz. : up to 1200 m³/h 60 Hz. : up to 6790 usgpm
-
Head range : 50 Hz. : up to 130 mtrs 60 Hz. : up to 455 feet
-
Rating : 50 Hz. : up to 160 kW 60 Hz. : up to 185 kW
-
Rated speed : 50 Hz. : 960/1450/2900 rpm 60 Hz. : 1150/1750/3450 rpm
