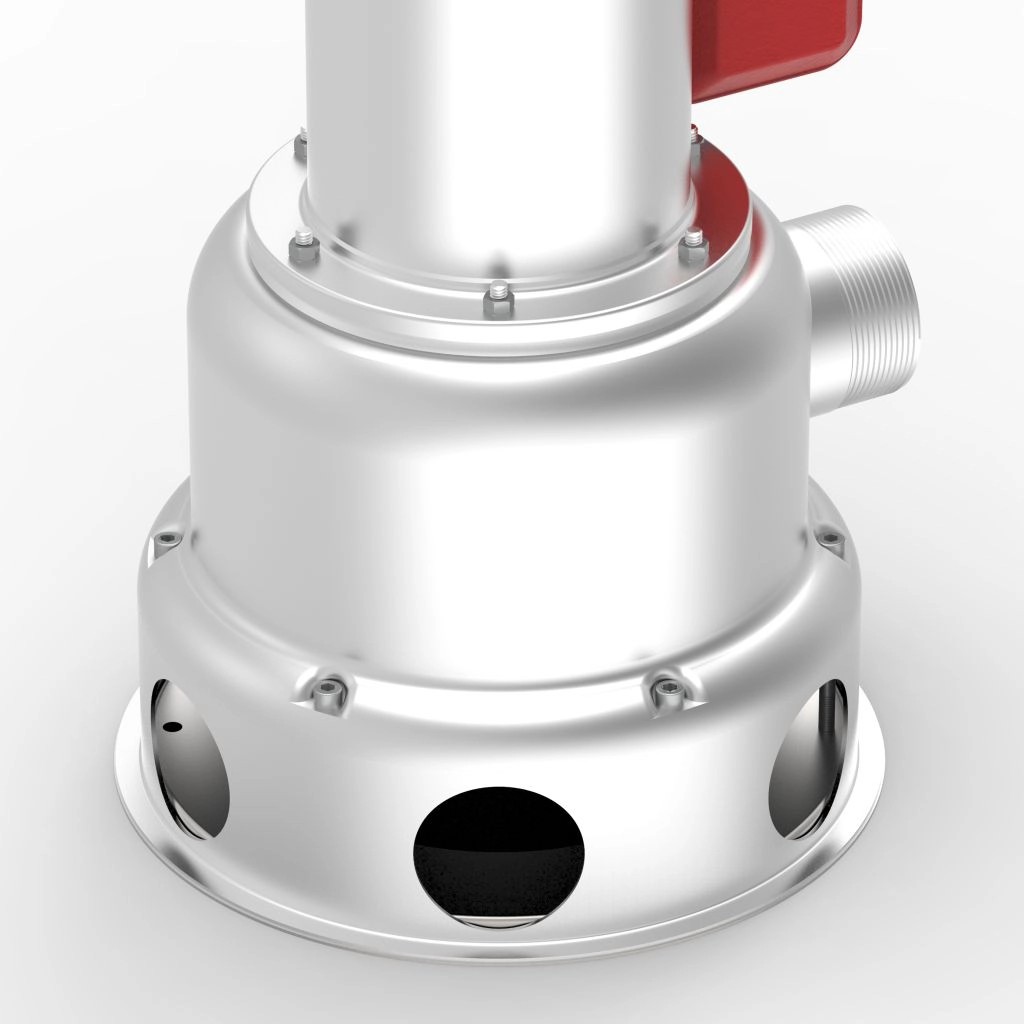

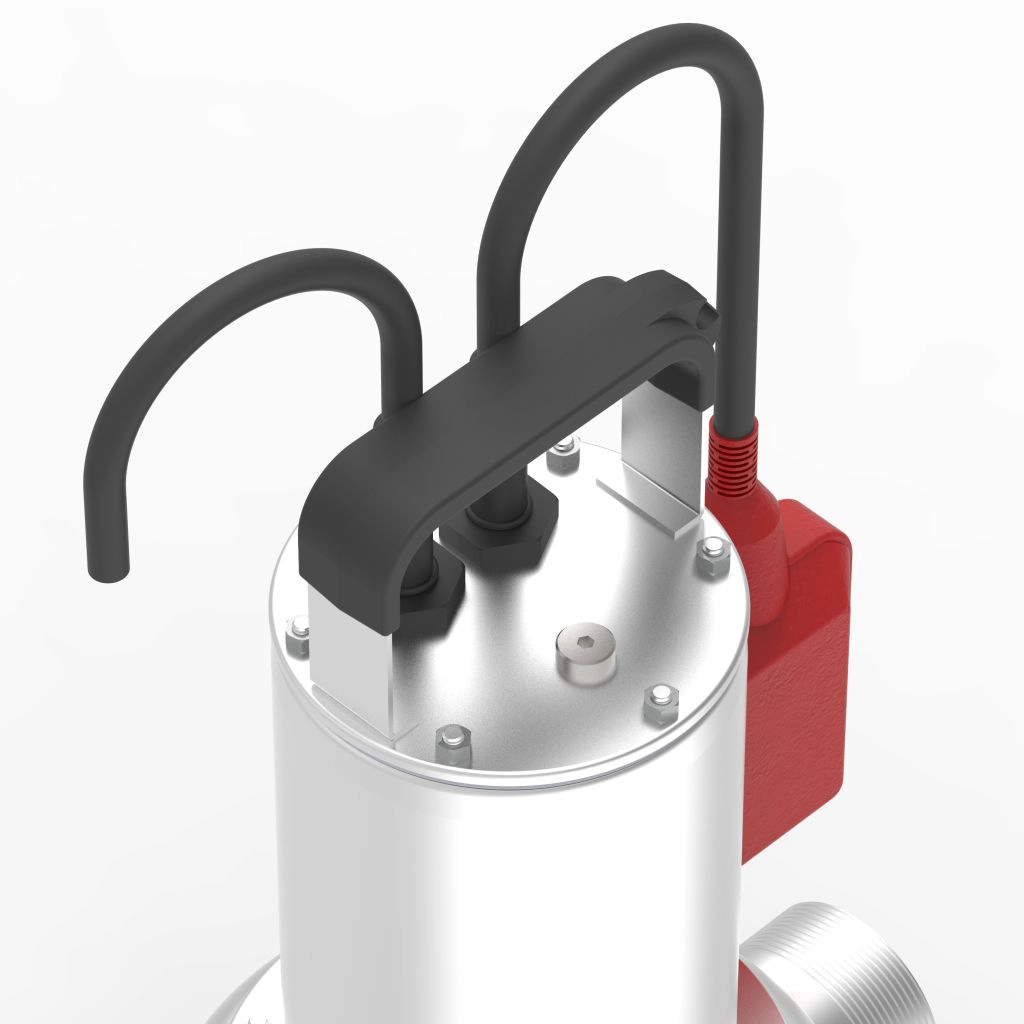

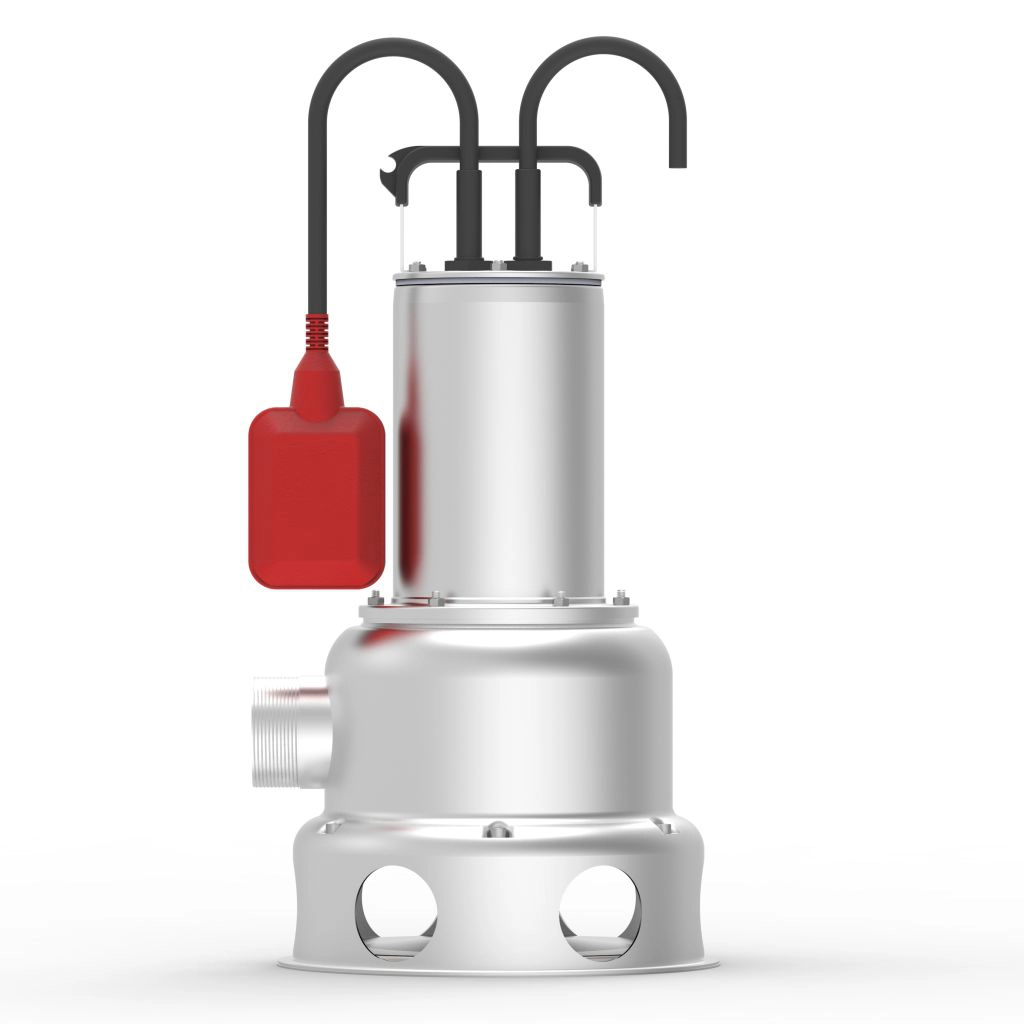

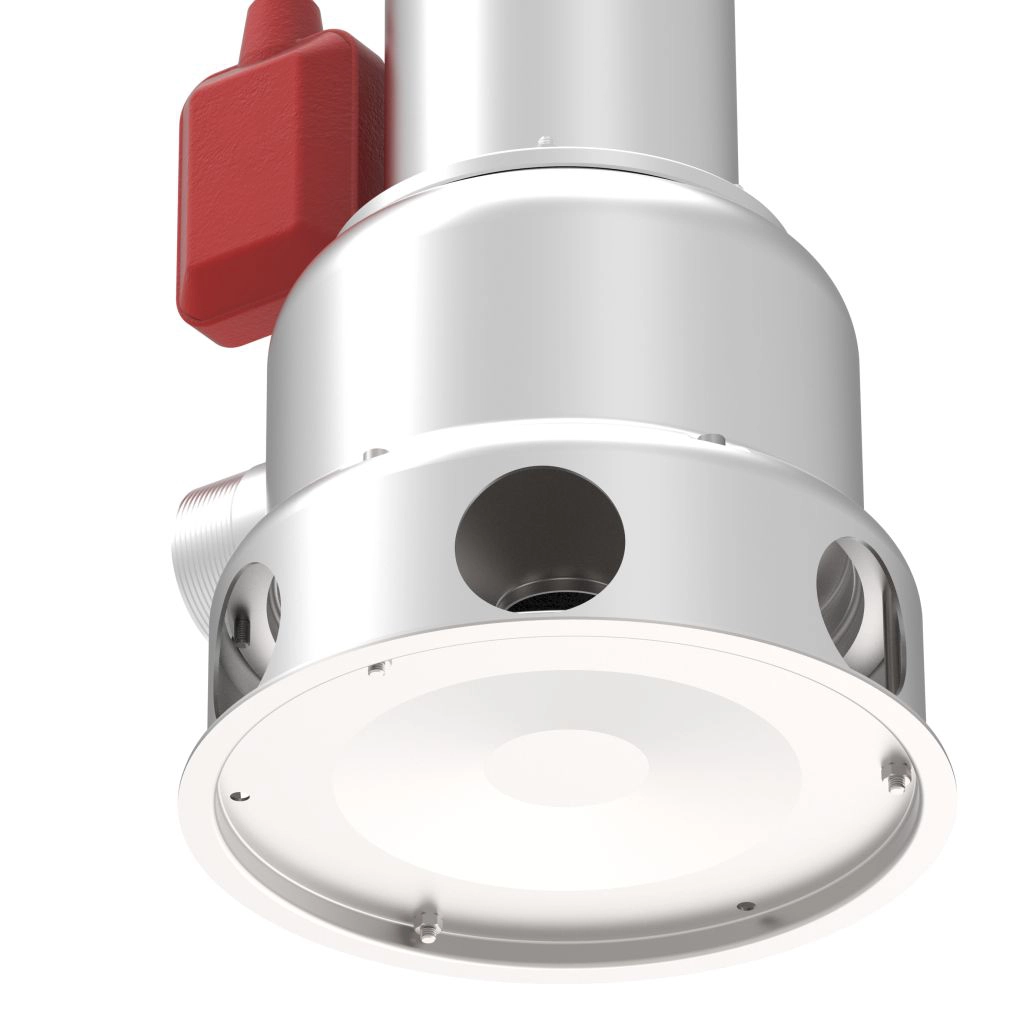

Stainless Steel Submersible Effluent Vortex Pumps (GBP Series)

The GBP series are close coupled, light weight stainless steel submersible effluent vortex pump.

Features

  • Light weight, portable.
  • Made out of stainless steel AISI 304 sheet metal.
  • High quality mechanical shaft seal.
  • Class-F motor insulation which can handle higher motor temperature.
  • Thermally protected motors which prevents motor from burn out.
  • Vortex impeller designs to handle solids laden sewage and/or fibrous substance.
  • A fully waterproof IP 68 structure, combined with a high grade silicon carbide mechanical seal.
  • Permanently lubricated ball bearings.
  • Solid passage size up to 40 mm.

Variety & Range

  • Flow range : 50 Hz. : up to 27 m³/h 60 Hz. : up to 120 usgpm
  • Head range : 50 Hz. : up to 15 mtrs 60 Hz. : up to 49 feet
  • Rating : 0.37 - 1.50 kW
  • Rated speed : 50 Hz. : 2900 rpm 60 Hz. : 3450 rpm

Applications

INDUSTRY

Agriculture

Fire
