Drainage Pumps (GAP Series)

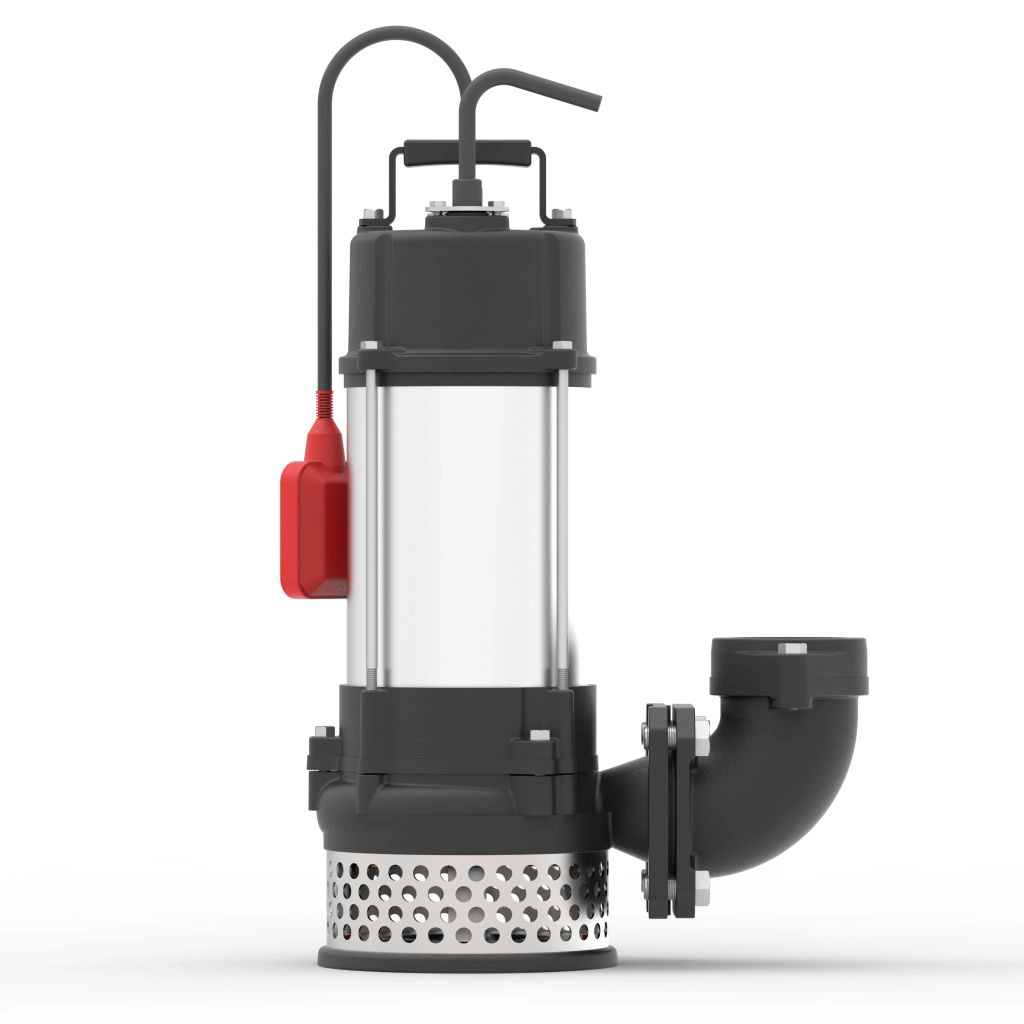

The GAP series are close coupled, submersible drainage pumps.

Features

  • New design for light weight, elegant shape with best quality.

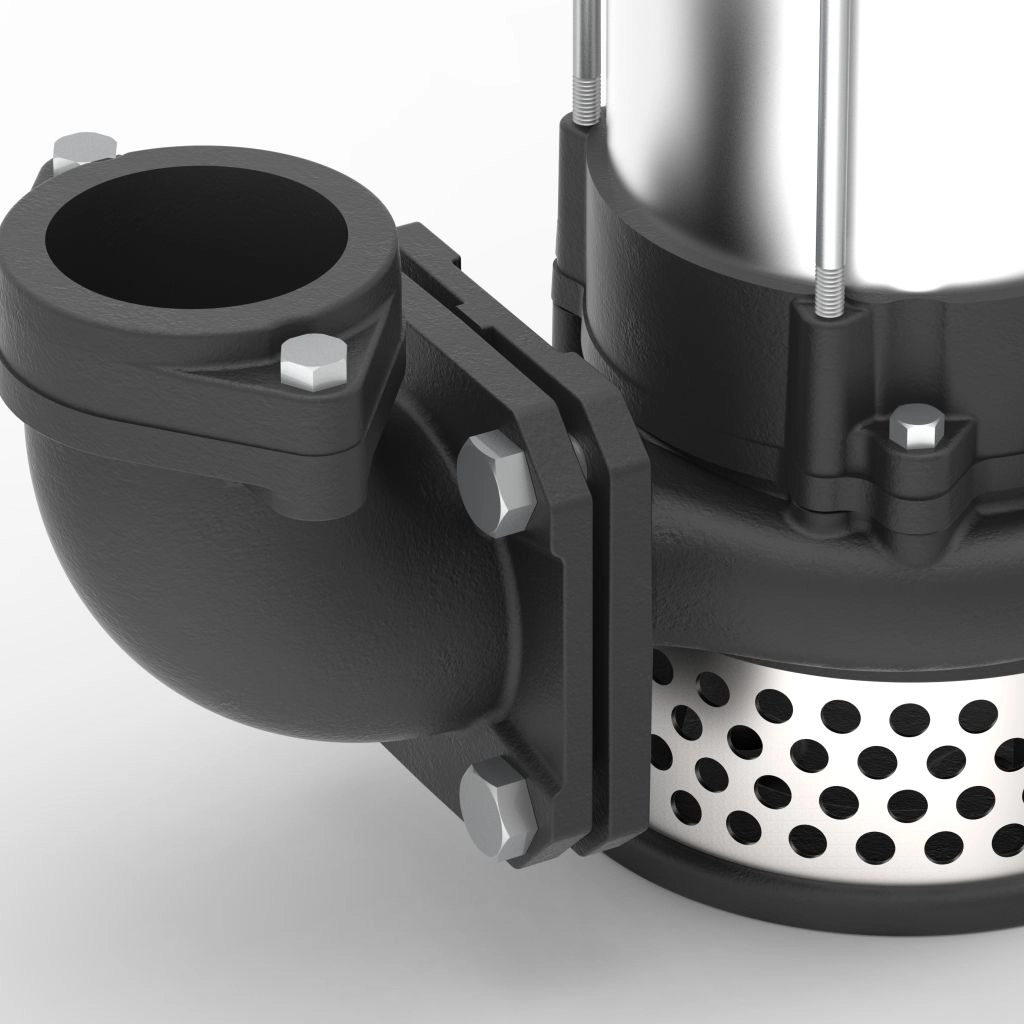

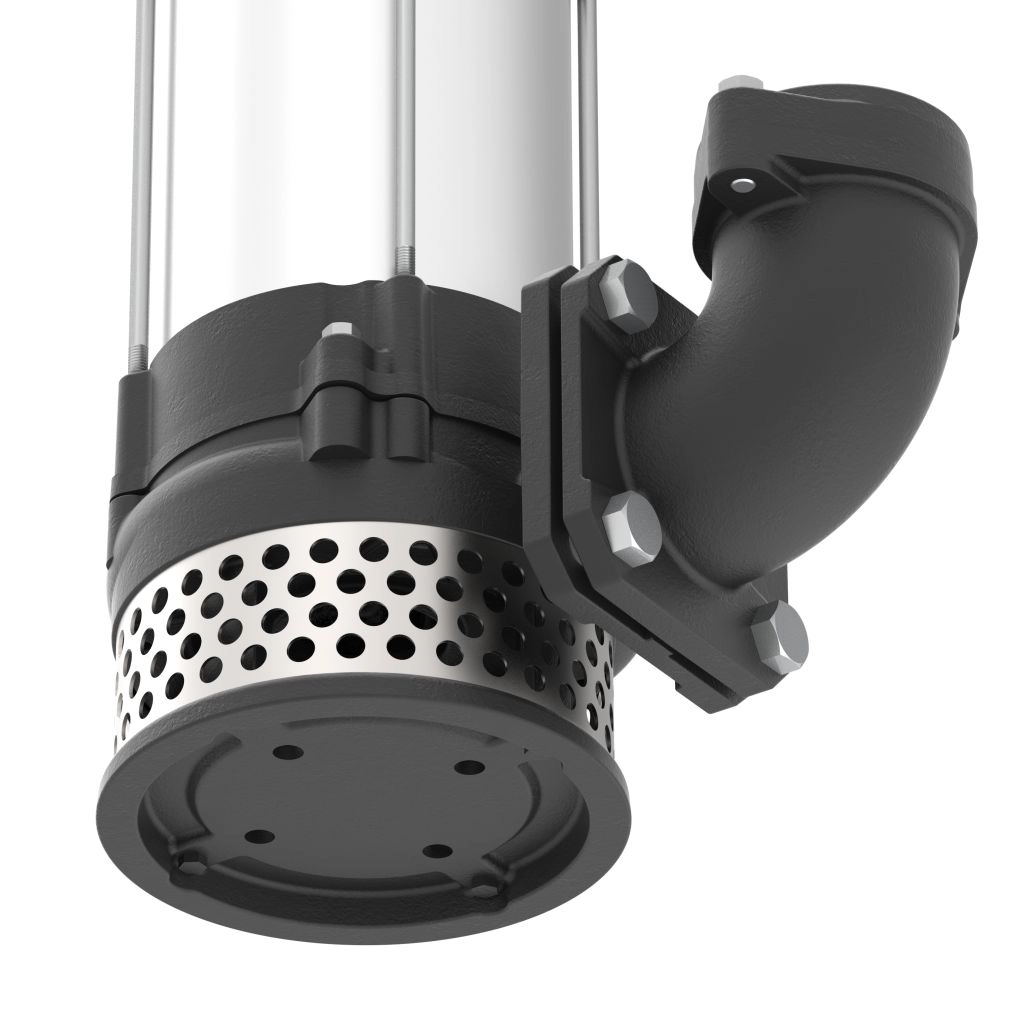

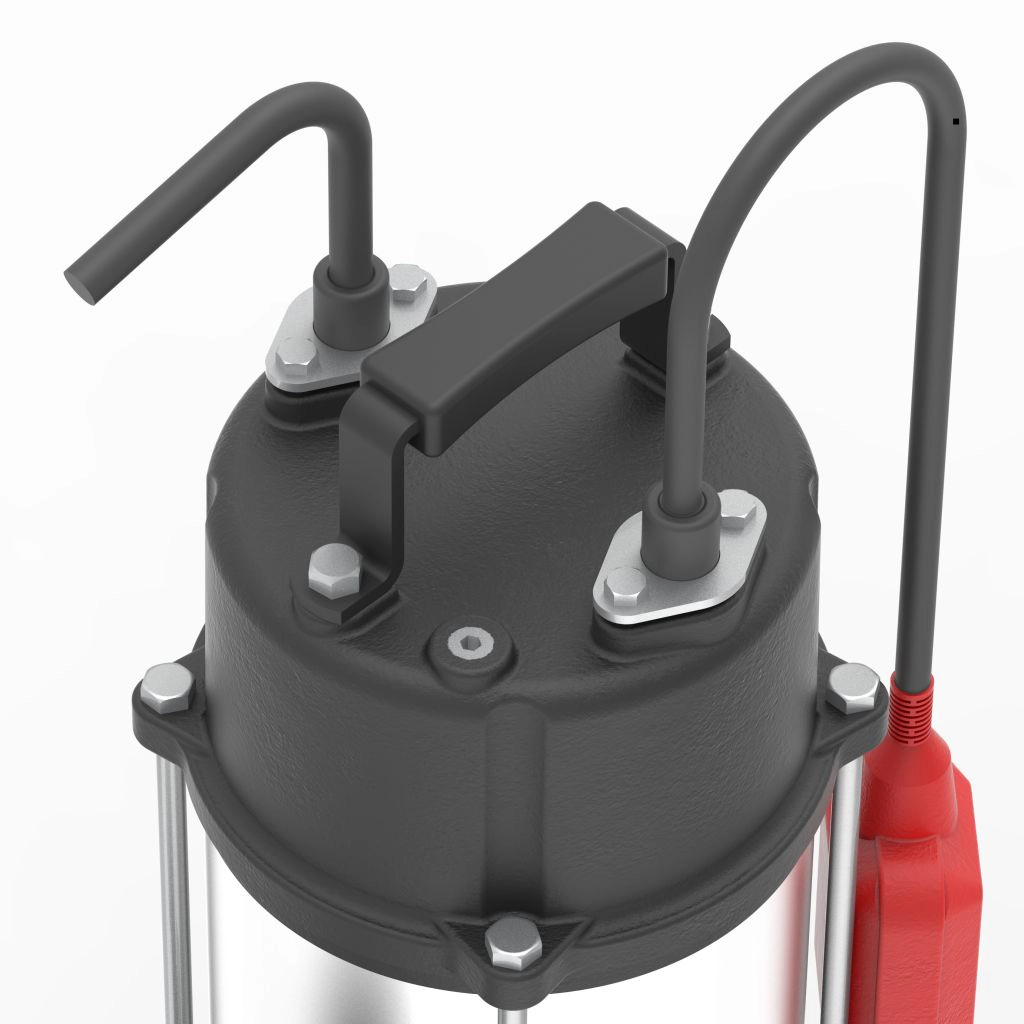

  • Unfastening the bolts between the oil casing and the upper pump casing allows the body to be separated for easy maintenance.
  • All pumps are furnished with double mechanical seal. All pumps up to 0,75 kW have carbon/ceramic sealing faces at both water end and motor end. All pumps starting with 1,5 kW and above have Sic sealing faces at the water end and carbon/ceramic sealing faces at the motor end.
  • Available with Sic/Sic mechanical shaft seal for pumping sandy water for 0,75 kW (optional).

Variety & Range

  • Flow range : 50 Hz. : up to 60 m³/h 60 Hz. : up to 255 usgpm
  • Head range : 50 Hz. : up to 29 mtrs 60 Hz. : up to 97 feet
  • Rating : 0.37 - 2.20 kW
  • Rated speed : 50 Hz. : 2900 rpm 60 Hz. : 3450 rpm

Applications

INDUSTRY

Agriculture

Fire
