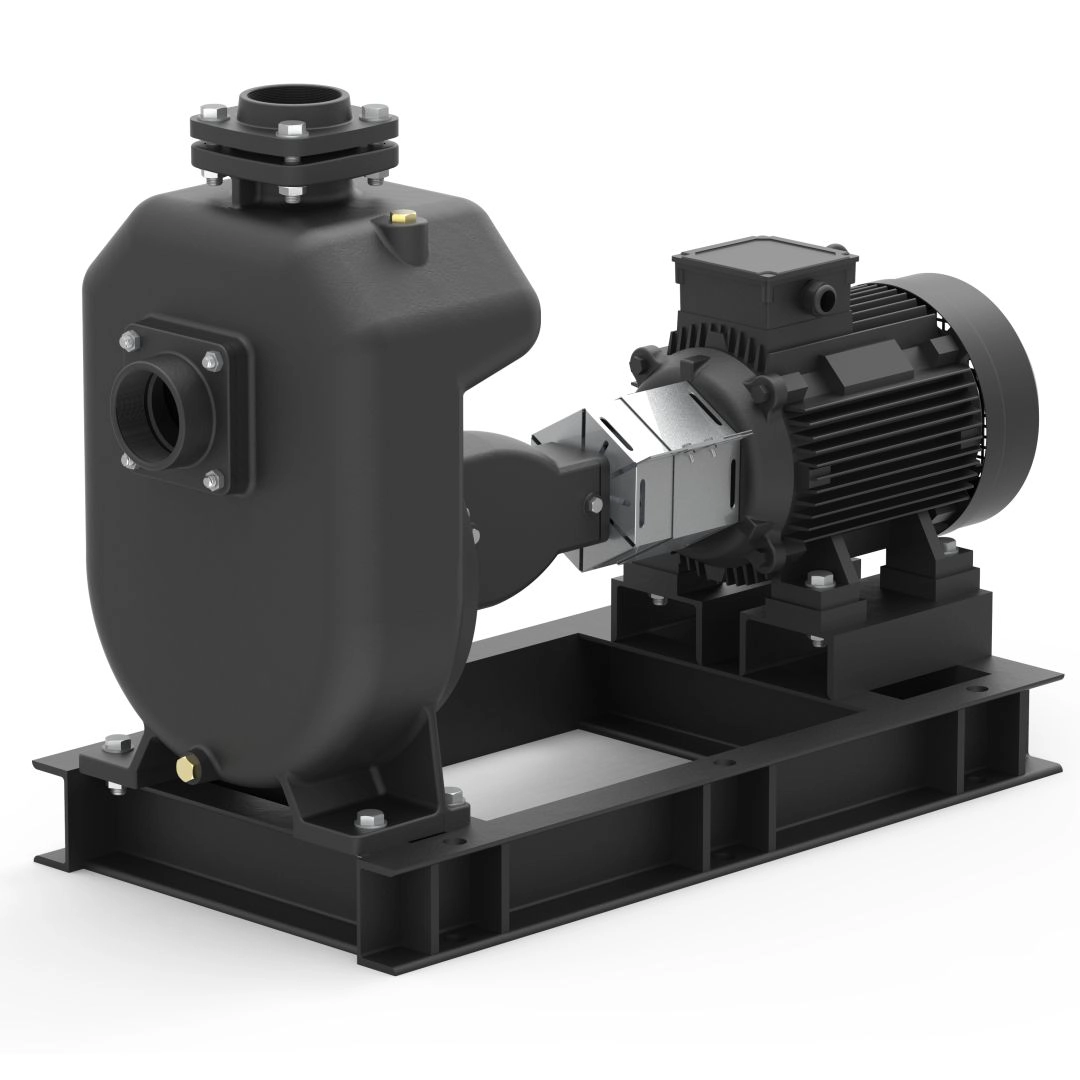

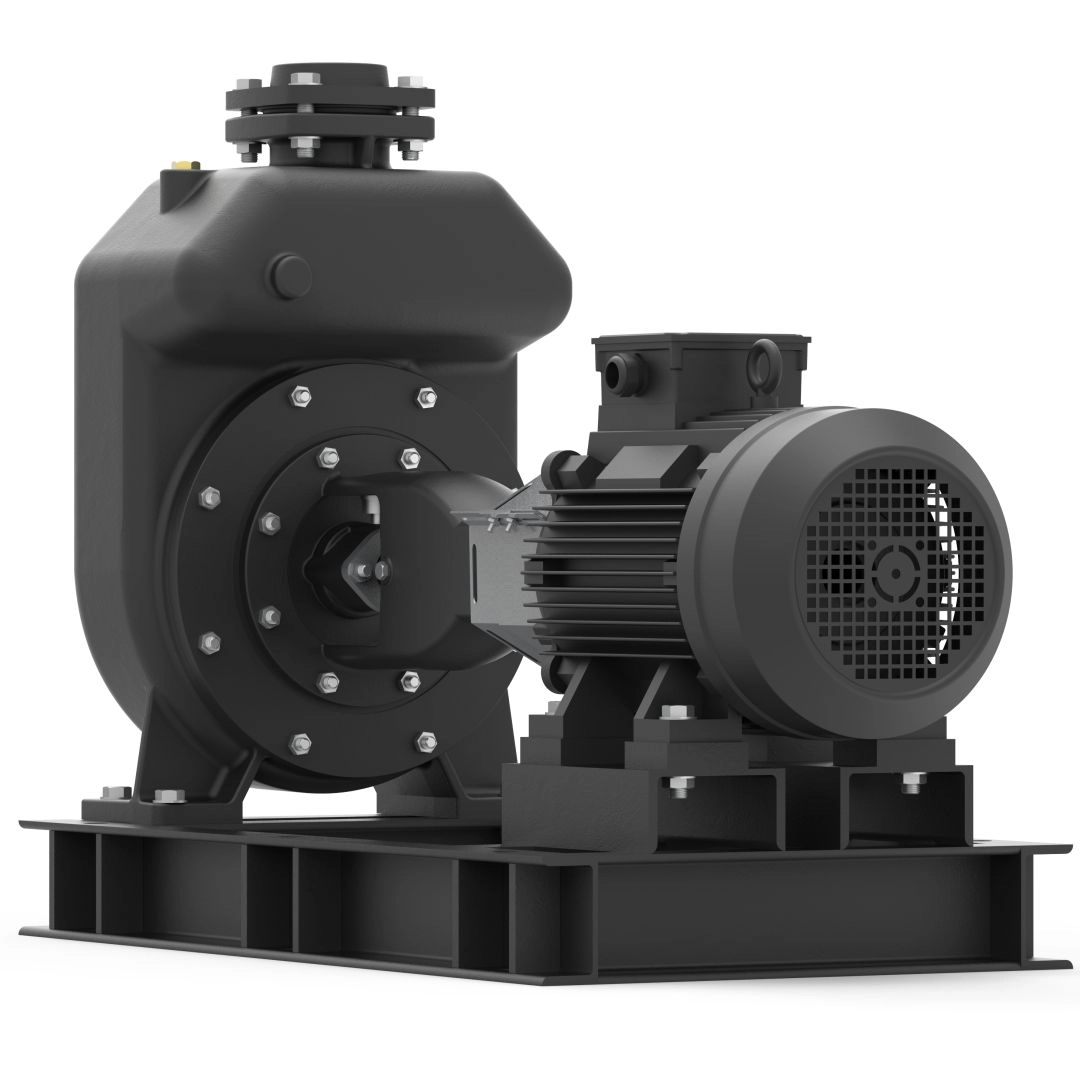

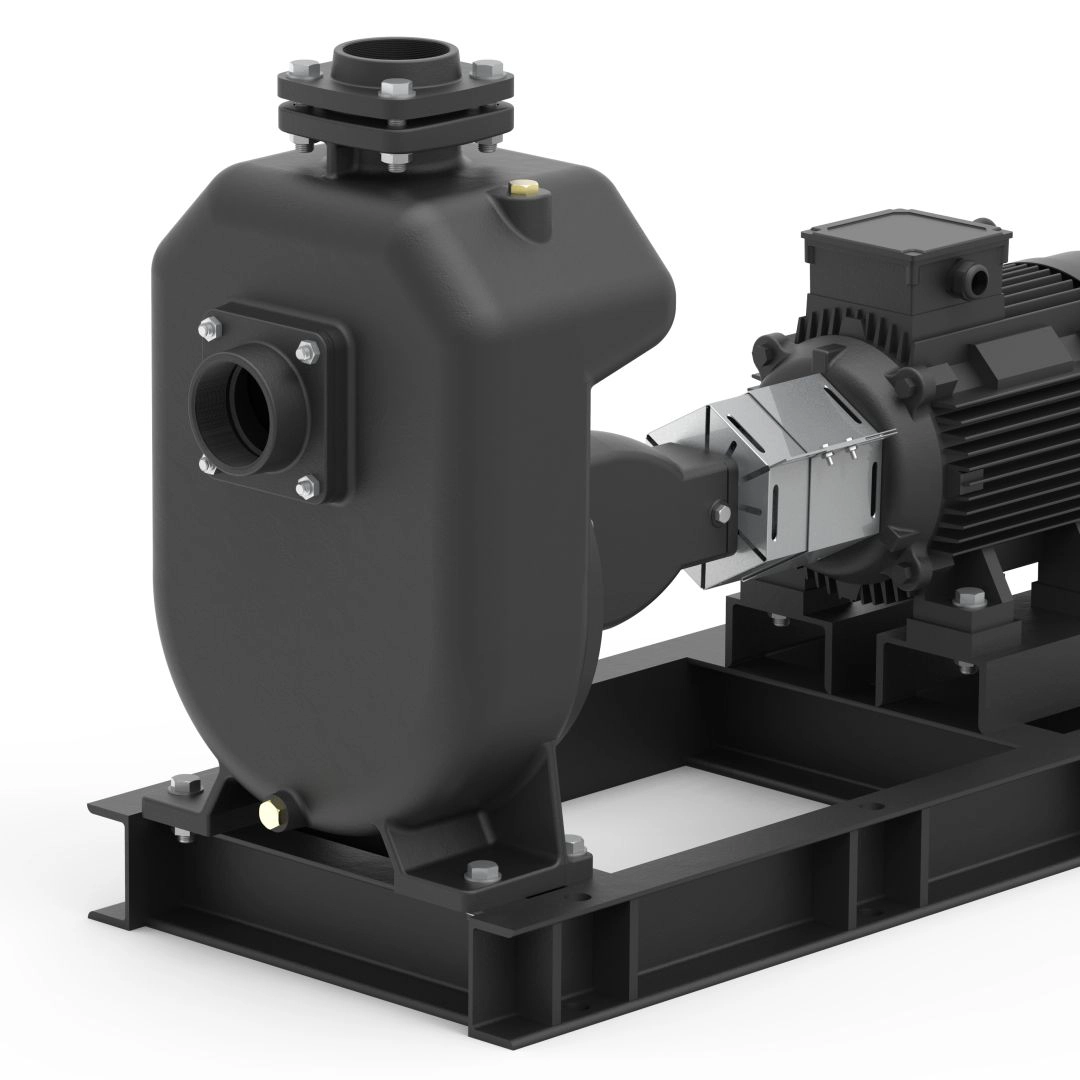

Self Priming Mud Pumps (GBM Series)

The General Pumps GBM series are self-priming, horizontal, single-stage, centrifugal, end-suction pumps.

Features

  • Excellent quick automatic pumping action without foot valve up to 8 metres at mean sea level
  • Compact design
  • Easy and simple installation
  • User-friendly operation
  • Low noise level
  • Reliable and robust construction
  • Reliable water supply
  • Back pull-out design which simplifies inspection and maintenance
  • Rotating parts are dynamically balanced which ensure vibration free performance and enhanced life
  • Better efficiency due to good hydraulic design
  • Automatic air release during priming
  • Can withstand wide voltage fluctuations
  • Class-F motor insulation which can handle higher motor temperature
  • Thermally protected motors which prevents motor from burn out
  • Non-clogging impeller flow design which can handle suspended solids up to 20 mm
  • Construction: Bare pump/Motor coupled/Engine-coupled.

Variety & Range

  • Flow range : 50 Hz. : up to 300 m³/h 60 Hz. : up to 580 usgpm
  • Head range : 50 Hz. : up to 35 mtrs 60 Hz. : up to 120 Feet
  • Rating : 50 Hz. : 0.37 to 18.7 kW 60 Hz. : 0.37 to 7.5 kW
  • Rated speed : 50 Hz. : 1450 / 2900 rpm 60 Hz. : 1750 / 3450 rpm

Applications

INDUSTRY

Agriculture

Fire
